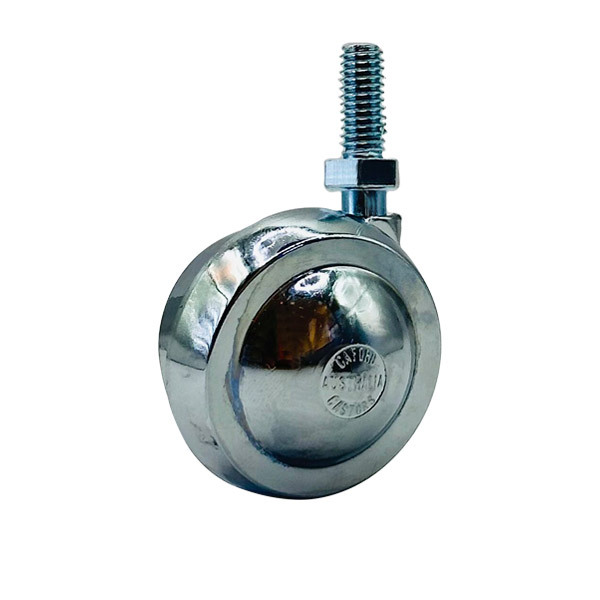

65mm Metal Ball Castor - Screw-In Thread & Socket

65mm Metal Ball Castor - Screw-In Thread & Socket

Our high-quality Metal Ball Castor Wheels with Threaded Stem come in three different thread measurements and are designed to provide a secure attachment to a thick timber base via the supplied connecting socket. These castors are built to last and are known for their robustness and accurate tracking, making them an ideal choice for furniture items that require frequent movement. Whether it is a bed, trolley, storage unit, or cabinet, these Metal Ball Castor Wheels are the perfect solution for ensuring easy mobility and stability.

BC65-THREAD
Option:
[{"colour":"","code":"BC65CHR-53IN","size":"5/16 BSW Screw-In 20mm Long Thread","price":21.13,"qty":9999,"pid":5578668,"style":"Insert Nut - Drill Size 11mm","disabled":false,"imgsrc":"/images/636766/pid3832662/65mm-Metal-Ball-Castor-Srew-In.jpg","title":"65mm Metal Ball Castor - Screw-In Thread & Socket"},{"colour":"","code":"BC65CHR-53INF","size":"5/16 BSW Screw-In 20mm Long Thread","price":21,"qty":9999,"pid":5578670,"style":"Flanged Insert Nut - Drill Size 11mm","disabled":false,"imgsrc":"/images/636766/pid3832662/65mm-Metal-Ball-Castor-Srew-In.jpg","title":"65mm Metal Ball Castor - Screw-In Thread & Socket"},{"colour":"","code":"BC65CHR-8TN","size":"3/8 BSW Screw-In 20mm Long Thread","price":21.04,"qty":9999,"pid":5578672,"style":"T Nut 11mm","disabled":false,"imgsrc":"/images/636766/pid3832662/65mm-Metal-Ball-Castor-Srew-In.jpg","title":"65mm Metal Ball Castor - Screw-In Thread & Socket"},{"colour":"","code":"BC65CHR-M8X25IN","size":"M8 Screw-In 25mm Long Thread","price":31.9,"qty":9999,"pid":5578674,"style":"Insert Nut - Drill Size 11mm","disabled":false,"imgsrc":"/images/636766/pid3832662/65mm-Metal-Ball-Castor-Srew-In.jpg","title":"65mm Metal Ball Castor - Screw-In Thread & Socket"},{"colour":"","code":"BC65CHR-M8X25INF","size":"M8 Screw-In 25mm Long Thread","price":31.63,"qty":9999,"pid":5578677,"style":"Flanged Insert Nut - Drill Size 11mm","disabled":false,"imgsrc":"/images/636766/pid3832662/65mm-Metal-Ball-Castor-Srew-In.jpg","title":"65mm Metal Ball Castor - Screw-In Thread & Socket"},{"colour":"","code":"BC65CHR-M8X25TN","size":"M8 Screw-In 25mm Long Thread","price":31.76,"qty":9999,"pid":5578684,"style":"T Nut 11mm","disabled":false,"imgsrc":"/images/636766/pid3832662/65mm-Metal-Ball-Castor-Srew-In.jpg","title":"65mm Metal Ball Castor - Screw-In Thread & Socket"}]
Select Left or Right Hand Ball Castor:
Purchase Qty:


Attach your left and right-handed metal ball castors according to this layout guide for optimal manoeuvrability and straight tracking.

Metal Ball Castor Wheel Correct Layout of Left and Right Wheels
Attaching 4 right and left hand metal ball castor wheels to a round furniture baseAttaching 6 or more right and left hand metal ball castor wheels

  • Caford's high-quality metal caster wheels are made from a high-strength zinc alloy, resulting in a product that is exceptionally durable and resistant to corrosion.
  • These wheels are designed to provide accurate manoeuvrability, featuring a configuration of left and right wheels that create a straight tracking unit, as well as 360-degree swivel functionality that allows for precise manoeuvring.
  • Metal ball castor wheels are an ideal choice for trolleys, storage units, and bed bases.
  • To learn more about the wheel configuration, please refer to the "INFORMATION" tab.
  • We offer the following imperial and metric threaded stems and sockets:
    • Imperial 3/8 BSW Thread with Choice of Sockets:
      • Insert Nut: 3/8 BSW Thread, 18mm Long
      • T Nut: 3/8 BSW Thread x 12mm Long
    • Imperial 5/16 BSW Thread with Choice of Sockets:
      • Insert Nut: 5/16 BSW Thread, 18mm Long
      • Insert Nut Wide Flange: 5/16 BSW Thread x 12mm Long
      • T Nut: 5/16 BSW Thread x 10mm Long
    • Metric M10 Thread:
      • Insert Nut: M10 Thread x 20mm Long

    Castor Wheel Specifications:

    • Wheel diameter: 65mm
    • Wheel type: metal ball castor
    • Mount height: 77mm
    • Swivel radius: 55mm
    • Load capacity: 45kg per castor

    Screw-In Threaded Stem Fitting:

    • Type: 20mm threaded stem
    • Application: The main benefit of castors with a threaded rod or stem is their ease of replacement by simply unscrewing. Typically used to fix castor wheels to timber furniture frames on sofas, chairs, beds, and table legs
    • Compatible Components: When replacing existing castor wheels, please ensure the connecting nut in your furniture has a matching thread.
      • 5/16 Thread Screw-In Castor = 5/16 Texcert | Insert Nut with Flange, 5/16 bsw thread x 20mm long
      • 3/8 Thread Screw-In Castor = 3/8 Texcert | Insert Nut with Flange, 3/8 bsw thread x 20mm long
      • M10 Thread Screw-In Castor = M10 Texcert | Insert Nut with Flange, metric M10 thread x 20mm long
